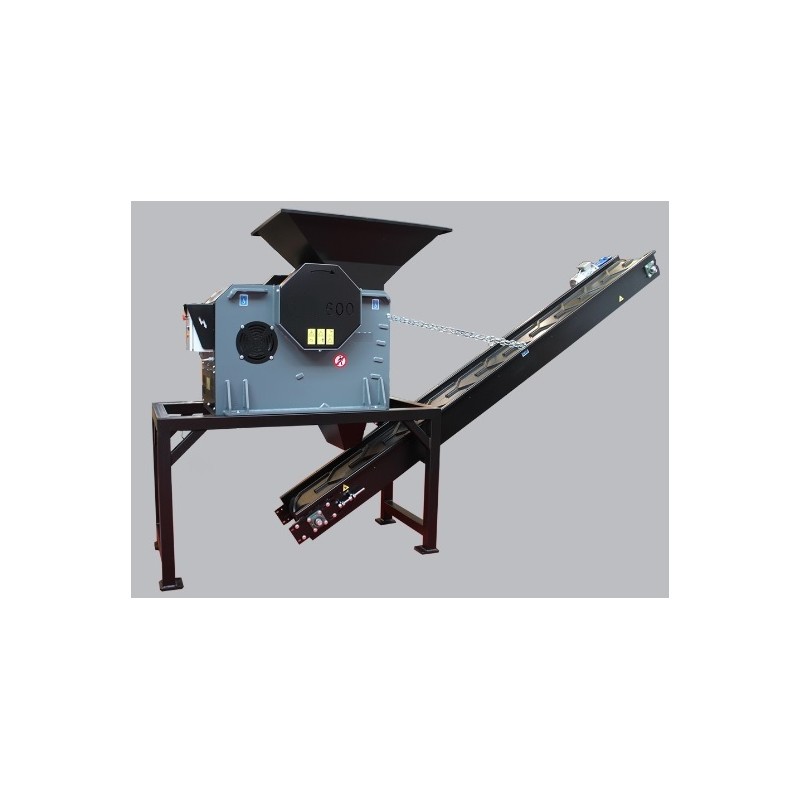

Jaw crusher Grey EJC600
Jaw crusher EJC series is ideal for the recycling of aggregates from small demolitions, excavations, natural stones, rock, tiles, scraps of marble, reinforced concrete. It can be easily moved thanks to its small dimensions. It is produced in two models and requires only a 380 V power supply. Equipped with a three-phase electric motor, it is characterized by a particular constructive resistance and its hourly production is very high. The crushing system is made of 18% manganese fusion jaws, while the casing is entirely made of high strength material. The output size is easily adjustable and the loading hopper as well as the supporting frame can be customized.
Jaw crusher applications
- for crushing of natural rock
- crushes all types of demolition waste
- gravel pits, quarries
- demolition debris handling and processing
- is able to crush directly on the jobsite
- reduces transportation costs
- is convenient and easy to use and crushing is efficient
- suitable for both large and small construction sites
- Ensures that you can recycle at the demolition site and save money
- the size of the grain is adjustable
Features of jaw crushers
- 2 models with operating weight from 990 to 1380 kg
- Economy: minimum of space and time requirements and minimum of wear increases productivity
- Higher efficiency, robust Heavy Duty construction. Material processing and preparation time is reduced significantly.
- Maximum flexibility allow mobile and versatile applications. Quick and easy change of wear parts.
- Easily transportable
- Control panel in safe position
- Easy and uncomplicated maintenance
- Crushing plates made of 18% manganese cast
- Three-phase electric engine inside the structure
- Loading hopper and support as standard
Options
- Motor with different voltages and tensions (for non-EU countries
- Customizable loading hopper
- Customizable support
- Conveyor belt for output material
- Magnetic separator for metallic pieces
- One or double deck vibrating screen
Specs
|
EJC400 |
EJC600 |
Mouth width mm |
400 x 200 |
600 x 300 |
Weight Kg |
990 |
1380 |
Loading hopper mm |
1000 x 600 |
1300 x 800 |
Opening mm |
10 / 80 |
10 / 80 |
Voltage |
380 V |
380 V |
Power Kw |
7,5 |
11 |
Dimensions w x d x H |
700x2010x2260 |
910x2010x2260
|
