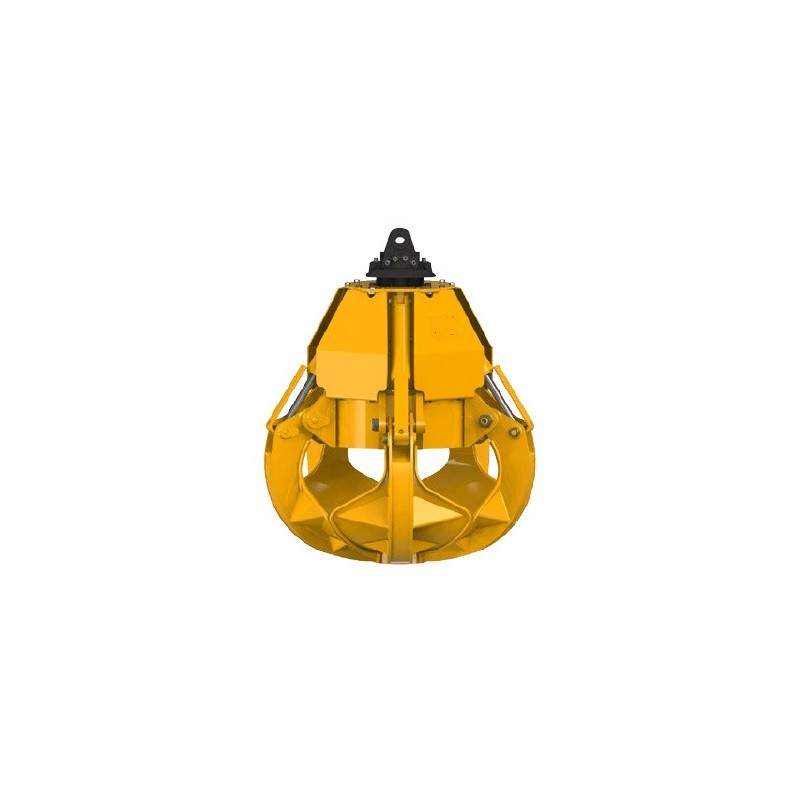

Orange peel grapple Blue OPM 260-5 (4...8t)
  • Orange peel grapple Blue OPM 260-5 (4...8t)
  • Orange peel grapple Blue OPM 260-5 (4...8t)

Orange peel grapple with magnet Blue OPM 260-5 (4...8t)

Blue OPM 260-5

Orange peel grapple 595 kg

Blue OP orange peel grapples are designed for excavators in mind to provide maximum durability and low maintenance, reducing downtime. Orange peel grapples are designed t for moving scrap steel, different debris, Municipal Solid Waste and Recyclables The grapples have 5 or 6 fingers with three different finger styles, depending on the application of the grapple

0,00 €
Impuestos incluidos
Cantidad
Fuera de stock

Descripción

Blue OP orange peel grapple OPM 260-5 (4...8t) 595 kg

The orange peel grapple Blue OP series is designed for handling and loading of scrap and various materials. Thanks to the specific conformation of the tines, this grapple is suitable for dischargers and excavators. It also stands out for high productivity and versatility. Designed to withstand over time, all the components subject to wear are made with wear resistant HARDOX. Enriched with new technical and structural content that improve the form and the function, the OP model is equipped with cylinder brake mounted in a reverse position. Maintenance operations are simplified by the shape of the casing and allow to minimize machine downtime.

Polyp grab for scrap and different material handling

Options:

  • Electric control with button panel with protection IP55
    Dimensions: 200x300x400 mm
    Electric cable (2x6 mm²)
    Cable winding-stroke max 12 metres

Polyp grab technical specs

Weight kg 595
Excavator t 4 - 8
Volume m3 0,26
Opening mm  2000
Lifting ability t 2
Working pressure bar 250
Min oil flow l / min 90
Tines pcs 5
Detalles del producto
Blue OPM 260-5
