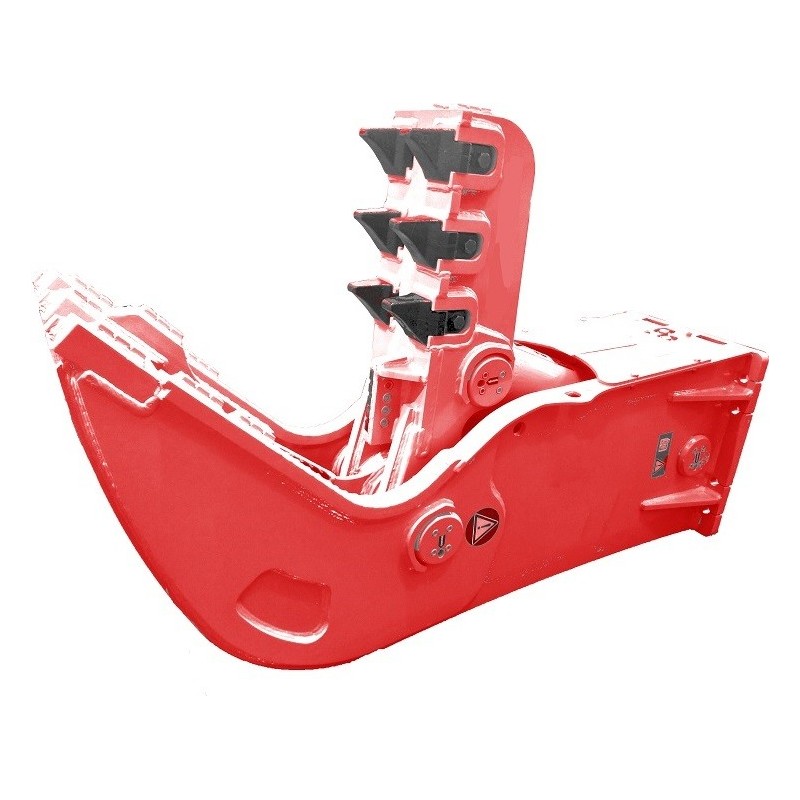

Pulverisers Yellow P 100 (80 … 130 t) 11400 kg

Pulverisers Yellow P 100 (80 … 130 t) 11400 kg


Yellow line pulveriser for 60 … 130 t excavators (180 000 – 290 000 lb). Static concrete pulverizer P100 Muncher / fixed / static hydraulic pulveriser is suitable for the secondary demolition. Fast movement of fixed pulveriserjaw ensure good productivity

More details...

Request a quote:

Pulveriser Yellow P 80 (60 … 130 t) 11400 kg

Green Attachments Yellow P fixed hydraulic pulveriser is suitable for the secondary demolition phase. Its particular hook shape makes it extremely versatile for use on the ground, allowing the demolition of boundary walls and vertical cement structures of medium height, paving and slabs with the consequent separation of the reinforcement iron in concrete.

There are cutting blades in order to cut reinforcements. Yellow P pulverisers design has been made according to customer’s needs to acquire light and durable structure combined with high power and efficienfy. The geometry of Yellow line rotating pulverisers makes sure that maximum power is reached just in the right moment.

Pulverisers are designed with flange which allows the customer to change adapter easily. Green Attachments provides different adapters when needed.

The Yellow P pulveriser range consists of eight models for 6 - 130 tonne excavators (13 000 – 290 000 lb).


Applications of Yellow P hydraulic pulverisers

  • secondary demolition in recycling plant
  • handling and sorting of material
  • concrete pulverising

Features of Yellow P pulverisers:

  • Wear resistant Hardox 400 has been used to decrease wearing. It is essential to build all parts which touch the material by wear resistant material.
  • Yellow P pulverisers have been designed to heavy duty applications by optimising its robust structure
  • Jaw capacity is extremely large to increase productivity
  • Yellow P pulverizers have a high speed valve to increase performance. There oil is rotated from rod side to piston side regeneratively, It is cylinder mounted for better efficiency
  • Pulverizer teeth are made of special forged material. They have bolt connection for easy replacement
  • Wear resistant cutting blades are bolt mounted and easily reversible.4 way indexable to save cost
  • Axels are hardened and greasing points has been designed to make maintenance easy.
  • Pulverisers have changeable steel bushings and they have been over sized in order to increase life time.
  • Pulverizers have an easily removeable maintenance cover to decrease service time
  • Big cylinders of pulverisers ensure huge power and they are reversed in order to protect cylinder rod.
  • Pulverisers have a well designed hydraulics to minimize overheating.
  • Pulverizers have maintenance free fittings in order to minimize leaks and problems

Specifications of hydraulic static pulveriser

fixed pulveriser

Weightkg11400 / 25200
Excavator weightt80 - 130 / 180 - 290
Openingmm1800 / 70.9
Widthmm950 / 37.4
Lengthmm3200 / 126.0
Blade lengthmm300 / 11.8
Max cutting forcet550 / 1210
Crushing force (tip)t240 / 528
Working pressurebar340 / 4960
Excavator oil flowl/min600 / 160
