Cutter Crusher Yellow C 2500 (35 … 50 t)

Cutter Crusher  Yellow C 2500 (35 … 50 t)

Yellow line cutter crusher for 35 … 50 t excavators (77 000 – 110 000 lb), 2750 kg. Concrete crusher. Yellow C cutter crushers have been created for the most demanding and precise primary demolition crusher application. Yellow C cutter crushers are suitable for the demolition of reinforced concrete structures

More details...

Request a quote:

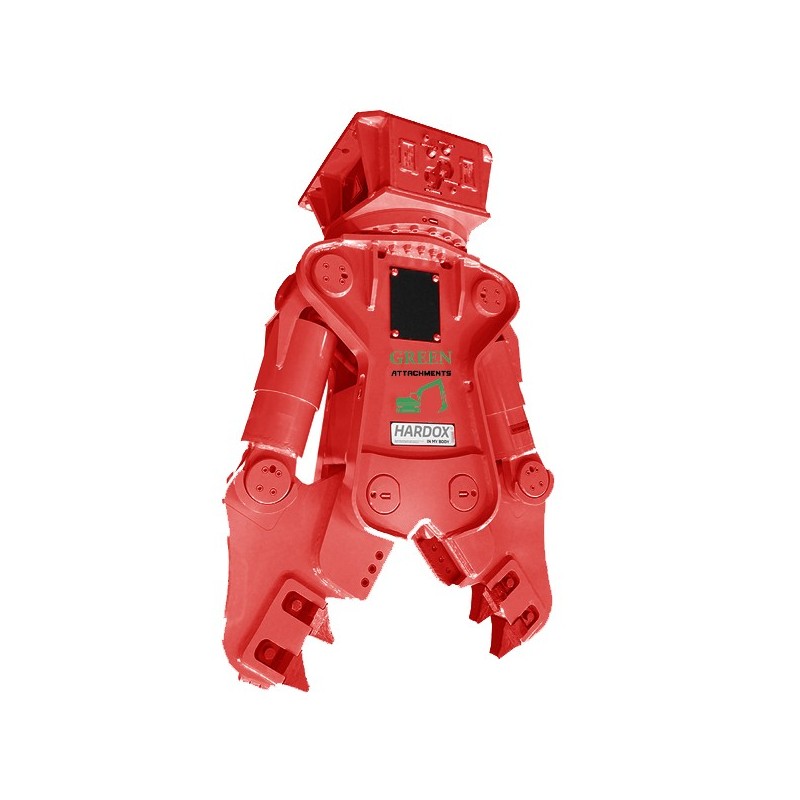

Cutter Crusher Yellow C 2500 (35 … 50 t)   2750 kg

Green Attachments cutter crusher Yellow C range has been created for the most demanding and precise primary demolition applications. Yellow C cutter crushers are suitable for the demolition of reinforced concrete structures and the high rise building demolition, mounted on long reach demolition booms. The product has a robust structure and powerful and efficient productivity. The geometry makes sure that maximum power is reached just in the right moment and two cylinder kinematics allows very high power also in the end of the movement when high cutting force is needed.

Robust structure of cutter crushers with fast and powerful performance allows efficient demolition, the most typical are reinforced concrete structures. There are cutting blades in order to cut reinforcements. Yellow RS cutter crusher design has been made according to customer’s needs to acquire light and durable structure combined with high power and efficienfy.

Cutter crusher are designed with flange which allows the customer to change adapter easily. Green Attachments provides different adapters when needed.

The Yellow C cutter crusher range consists of twelve models for 1.5 - 130 tonne excavators (3 300 – 290 000 lb).

Features of Yellow C cutter crushers:

-        Wear resistant Hardox 400 has been used to decrease wearing. It is essential to build all parts which touch the material by wear resistant material.

-        Yellow C cutter crushers have a high speed valve to increase performance. Then oil is rotated from rod side to piston side regeneratively, all products has not that feature.

-        Cutter crusher teeth are made of special forged material. They are easily replaceable

-        Wear resistant cutting blades are bolt mounted and easily reversible.

-        Axels are hardened and greasing points has been designed to make maintenance easy.

-        Cutter crushers have changeable steel bushings and they have been over sized in order to increase life time.

-        Slew bearing has double roll desing (bigger models) to increase strength.

-        Hydraulic rotation makes positioning of cutter crushes easy. Durable orbital hydraulic motors have a gear in order to maximise power and productivity.

-        Hydralic motors are equipped with double pressure relief valves

-        Cutter crushers have easily removeable maintenance covers to decrease service time

-        Big cylinders ensure huge power and they are reversed in order to protect cylinder rod.

-        Cutter crushers have well designed hydraulics to minimize overheating.

-        Cutter crushers have maintenance free SAE fittings in order to minimize leaks and problems.


Weight   kg / lb 2750 / 6080
Excavator weight   t /1000 lb 35 - 50 / 77 - 110
Opening   mm / Inch 1100 / 43.3
Height   mm / Inch 2700 / 106.3
Blade length   mm / Inch 220 / 8.7
Cutting force   t /1000 lb 320 / 704
Crushing force (tip)   t /1000 lb 125 / 275
Working pressure   bar / psi 320 / 4700
Excavator oil flow   l/min / gpm 340 / 90
Rotation pressure max   bar / psi 60 / 880
Rotation oil flow max   l/min / gpm 40 / 10.7
