Wood splitter Blue SW1400 (21 … 30 t) 2100 kg

Wood splitter Blue SW1400 (21 … 30 t) 2100 kg

Wood splitter Blue SW1400  (21 … 30 t) 2100 kg

The Blue Line wood splitter clamp is an equipment designed for the size reduction on the ground of large logs, tree stumps of wood already cut in order to rationalize their transport

More details...

Request a quote:

Wood splitter Blue SW1400  (21 … 30 t) 2100 kg

The Blue Line wood splitter clamp is an equipment designed for the size reduction of large logs, tree stumps or wood which is already cut and located in the ground in order to rationalize their transport, the subsequent processing steps (chipping, shredding) and to speed up the natural internal drying effect. The profile of the claws is designed to reduce the effort of penetration of the blades in the trunk, operation further facilitated by the presence of rolls. It’s equipped with an hydraulic rotation to increase the precision and limit the need for additional excavator movement. The range consists of five models for 3 - 30 tonne excavators (5 500 - 77 400 lb).

Wood splitter applications

  • wood splitting
  • tree stump cutting

Wood splitter features

  • good profile of blades
  • rolls of jaw for easier material movement
  • hydraulic rotation for better positioning

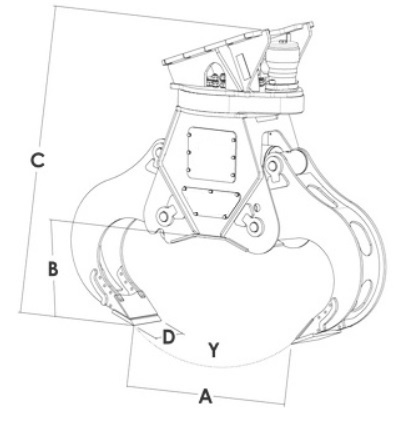

Technical specs of wood splitter

Wood splitter

Weightkg 2100
Excavator weightkg 21 - 30
Amm 1750
Bmm 900
Cmm 2300
Dmm 400
Y42
Working pressurebar 300
Excavator oil flowl/min 300
Rotation pressure maxbar140
Rotation oil flow maxl/min 20
