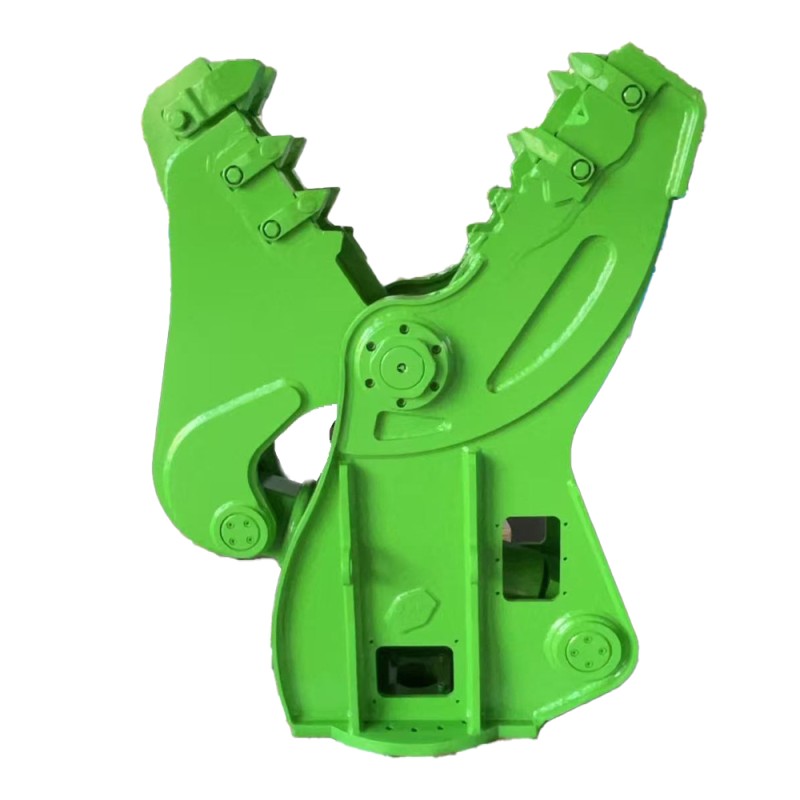

Pulveriser R 06 NM (5 … 13 t)
Green Attachments R hydraulic pulveriser is suitable for the secondary demolition phase as well as for the primary demolition of reinforced concrete structures. The geometry of R line pulverisers makes sure that maximum power is reached just in the right moment. Pulverisers’ straight design allows easy operation in demolition and also in ground level.
Robust structure of pulveriser with fast and powerful performance allows efficient demolition, the most typical are reinforced concrete structures. There are cutting blades in order to cut reinforcements. R pulverisers design has been made according to customer’s needs to acquire light and durable structure combined with high power and efficienfy.
Hydraulic demolition pulverisers are designed with flange which allows the customer to change adapter easily. Green Attachments provides different adapters when needed.
Applications of R concrete muncher
- primary demolition
- secondary demolition in recycling plant
- handling and sorting of material
- rubble preparation
- concrete pulverising
Features of R hydraulic demolition pulverisers
- Wear resistant Hardox 400 has been used to decrease wearing. It is essential to build all parts which touch the material by wear resistant material. Read more
- R pulverisers have been designed to heavy duty applications by optimising its robust structure. Read more
- R pulverisers have a high speed valve to increase performance. Then oil is rotated from rod side to piston side regeneratively, all products has not that feature. Read more
- Teeth are made of special forged material. They are easily replaceable. Read more
- Wear resistant cutting blades are bolt mounted and easily reversible. Read more
- Axels are hardened and greasing points has been designed to make maintenance easy.
- Pulverisers have changeable steel bushings and they have been over sized in order to increase life time. Read more
- Pulverisers have easily removeable maintenance covers to decrease service time. Read more
- Big cylinders ensure huge power and they are reversed in order to protec cylinder rod. Read more
- Pulverisers have well designed hydraulics to minimize overheating.

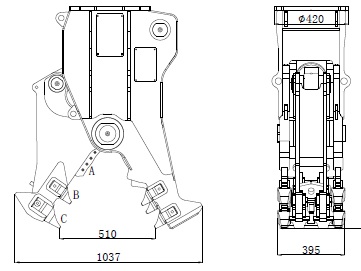

Specifications of pulveriser
| Weight |
kg |
580 |
| Excavator weight |
t |
5 - 13 |
| Opening |
mm |
510 |
| Width |
mm |
395 |
| Length |
mm |
1645 |
| Max cutting force |
t |
80 |
| Crushing force (tip) |
t |
40 |
| Working pressure |
bar |
280 |
| Excavator oil flow |
l/min |
150 |
